Sodium hypochlorite generator (salt water type)


The sodium hypochlorite solution generated by electrolysis of brine is used and produced without any by-products, and it does not affect the water quality and safety. With the improvement of the introduction of new technology, the Ou Rui brand sodium hypochlorite generator is unique in domestic technology, with a novel and unique appearance of high automation, high integration, and a number of product patents are applied.


Service Hotline:

Product Description

The principle of sodium hypochlorite sterilization

The main action of sodium hypochlorite disinfection is to form hypochlorous acid through its hydrolysis, and hypochlorous acid is further decomposed to form new ecological oxygen [O]. The extremely strong oxidizing nature of the new ecological oxygen denatures the proteins and other substances on bacteria and viruses. , Thereby lethal pathogenic microorganisms. Secondly, in the process of sterilization and virus killing, hypochlorous acid can not only act on the cell wall and virus shell, but also because the hypochlorous acid molecule is small and has no charge, it can also penetrate into the bacteria (virus) body and interact with the bacteria (virus) body. Organic polymers such as proteins, nucleic acids and enzymes undergo oxidation reactions to kill pathogenic microorganisms. Third, the chloride ions produced by hypochlorous acid can also significantly change the osmotic pressure of bacteria and virions, causing cells to lose activity and die.

Summary of the principle of sodium hypochlorite generator

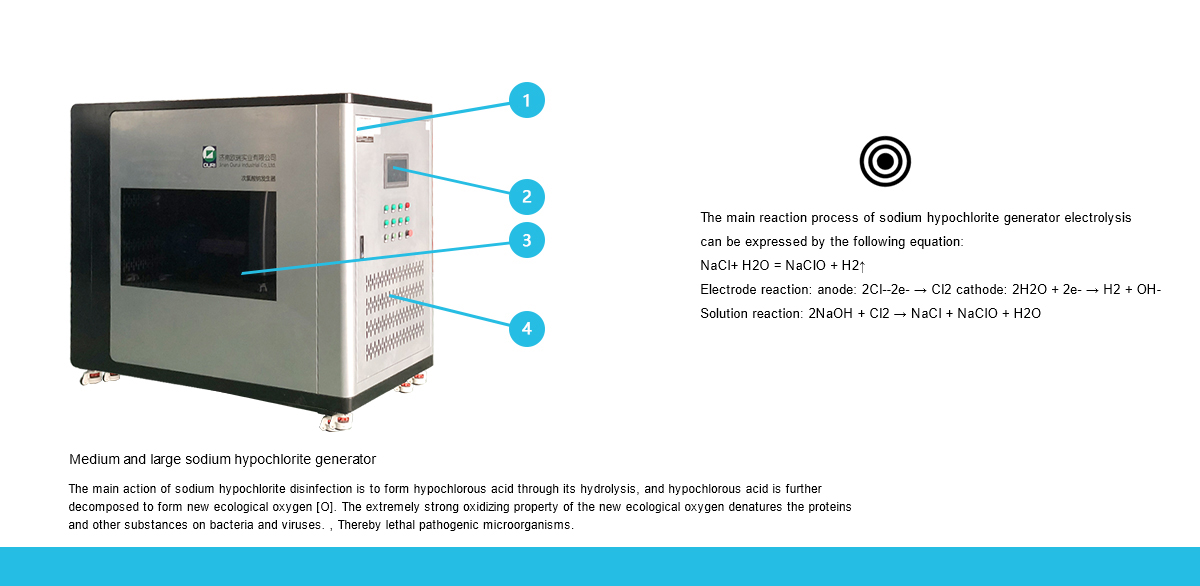

The main reaction process of sodium hypochlorite generator electrolysis can be expressed by the following equation:

NaCl+ H2O = NaClO + H2↑

Electrode reaction: anode: 2Cl--2e- → Cl2 cathode: 2H2O + 2e- → H2 + OH-

Solution reaction: 2NaOH + Cl2 → NaCl + NaClO + H2O

The electrolysis process of the electrolytic brine type sodium hypochlorite generator is an electrochemical reaction process. Its only raw materials are salt and water. The sodium hypochlorite solution is made of pure quality. Although the chemical principle is simple, there are many technical indicators that affect the economy. So sodium hypochlorite occurs The design of the electrolysis electrode of the electrolytic device should consider various factors, and design and manufacture according to the characteristics of compact and reasonable structure, energy-saving operation, convenient operation and maintenance, high reliability of operation, and long service life of the equipment. The sodium hypochlorite solution is accurately dosed, safe to operate, easy to use, easy to store, non-toxic to the environment, and there is no air leakage, and it can be dosed under any environmental working conditions.

System composition :

1. Soft water unit; 2. Cold and heat exchange unit; 3. Saturated brine preparation unit; 4. Dilute brine proportioning unit;

6. Electrode electrolysis assembly unit; 6. Interelectrode hydrogen separator unit; 7. Rectifier power supply unit; 8. Pickling unit;

9. Control system unit; 10. Hydrogen exhaust unit; 11. Storage unit; 12. Dosing unit;

Application field :


Large water plant

Sewage treatment plant

Secondary booster pumping station


Circulating water treatment


Petroleum and chemical circulating water treatment


Cyanide wastewater

Livestock breeding

Aquaculture (mariculture)

Industrial Park Sewage Treatment Station

Generator output: 1kg/h~60kg/h

Product Manual
Technical Parameters



National Standard (A)

European Standard



N / A


Available chlorine content


N / A

8000 +/- 10%

DC power consumption

kW.H / Kg.Cl2



AC power consumption

kW.H / Kg.Cl2



Salt consumption

Kg / Kg.Cl2



Enhanced life test




Detailed parameters and technical solutions can be consulted with the company or sales staff (no notice will be given for product technical upgrades)
